The Roadmender is a purpose built mobile asphalt batch plant designed to heat and mix up to 300kg’s of premium grade asphalt per 12 minute cycle for wearing course or to recycle breakout or plainings for binder course which reduces carbon footprint.
You can now make your own durable, long-lasting asphalt hot mix:
- Directly at the job site, with no waste
- In just the quantity you need
- At the correct ONSITE temperature for ideal compaction at every time
- Without the need to visit an asphalt plant
Specifications

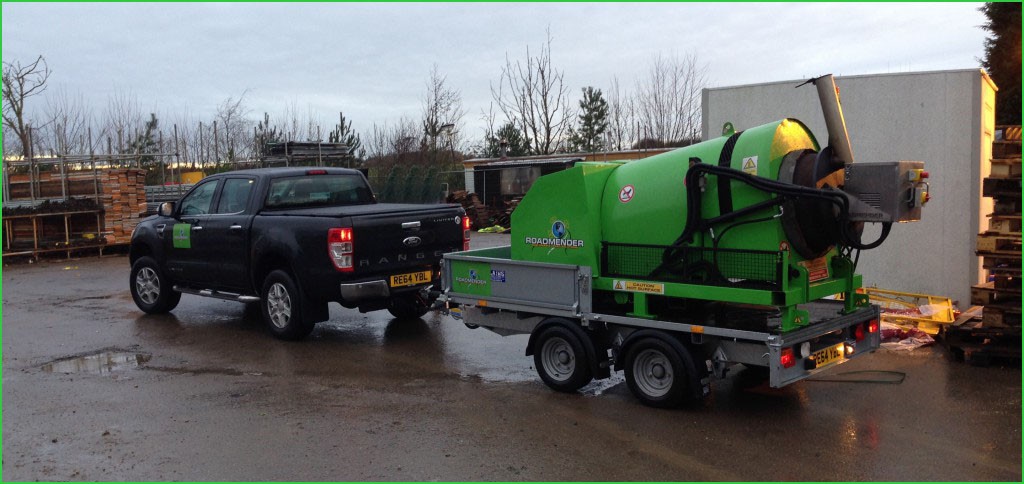

Transported on 10×6 trailer or a pick-up
Weight of machine – 1,100kg
Recommended batch capacity of 300kg with 12 minute cycle
Drum made of 2mm steel with 3mm cone and 5mm back plate
Front cover made of 2mm steel
Protective cover made of 2mm steel
Lombardini KDW1003 diesel engine
Manual hydraulics control system to rotate drum and tip mixture
Riello 482T50 burner with diesel non return valve
Diesel fired drum and dryer/mixer unit
50 litre fuel tank
Electric start
Emergency cut-off with adjustable timer
Meccalte 3.5KW alternator
Flashing warning beacon
2kg ABC powder fire extinguisher

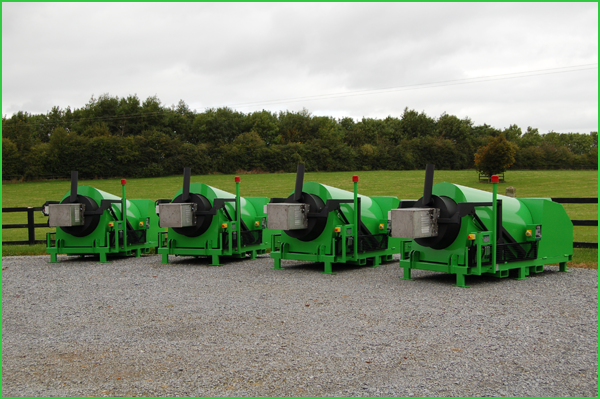

4 machines hot off the production line
Click here to view our Presentation (PDF)
